VS-GSWG Series VS-GSWG Series – Swing Gate Opener

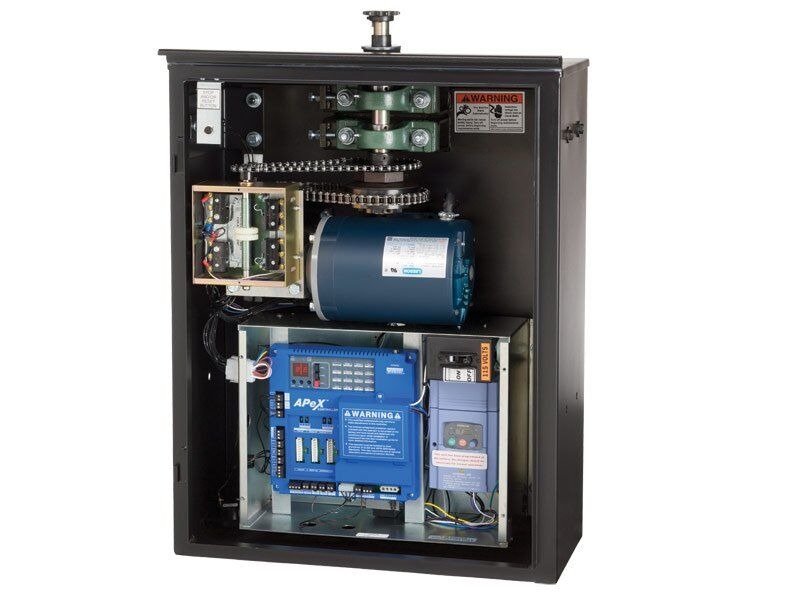

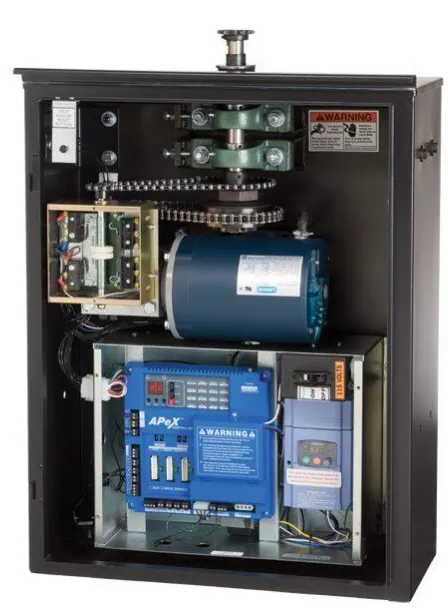

The Model VS-GSWG is a heavy-duty variable speed swing gate operator designed for smooth, secure and reliable operation of large, heavy swing gates. The positive locking linear drive arm design provides enhanced security, plus increased ability to withstand high wind loads – especially important for large, heavy gates. The VS-GSWG is available in 1/2, 1 or 2 HP, 115V-460V single- or three-phase power, 18-22 second gate opening speed.

Part Number: VS-GSWG Series

Features

General

  • Integral APeX Controller

  • For large/heavy swing gates

  • Continuous-duty industrial 56-frame motor

  • Full variable speed

  • Soft start/soft stop capability

  • All voltages, single or three-phase

  • Emergency disconnect

  • Electrical power disconnect

  • On-board APeX Controller three-button control station

  • Master/second built in

  • Durable powder coat finish

  • Right hand – left hand convertible

  • Timer to close

  • Post mount standard; pad mount optional

  • Powder coat finish

  • ETL Listed for UL 325 (Class I-IV) for U.S. and Canada

Electrical

  • Variable speed – soft start/ stop programmable through variable frequency drive

  • Duplex receptacle on 115 VAC units

  • AC and DC power available for access control accessories and reversing devices

  • All accessory connections 24 VDC

  • Easily adjustable rotary limit switches

Mechanical

  • Heavy-duty 60:1 right-angle C-face gear reducer

  • Adjustable torque limiter

  • Exclusive linear drive arm

  • Heavy-duty pillow-block bearings
